ESD PEEK Sheet

Product Description of ESD PEEK sheet

ESD PEEK is antistatic, nano carbon fiber reinforced PEEK which shows an extraordinary mechanical strength, toughness, flexural strength, torsional strength, ESD PEEK exhibits excellent chemical resistance, very good dielectric properties,and temperature resistance up to -40℃~260 ℃ and a very good resistance to all kinds of radiation. The static value is 106 -109Ω . Our ESD PEEK sheet has excellent antistatic properties, surface resistivity 106 -109Ω/sq, uniform surface resistivity, the product does not precipitate low molecular substances, does not de volatile blacksubstances, usually through extrusion process shapes in ESD PEEK sheet and ESD PEEK rod.

Typical Properties of ESD PEEK sheet

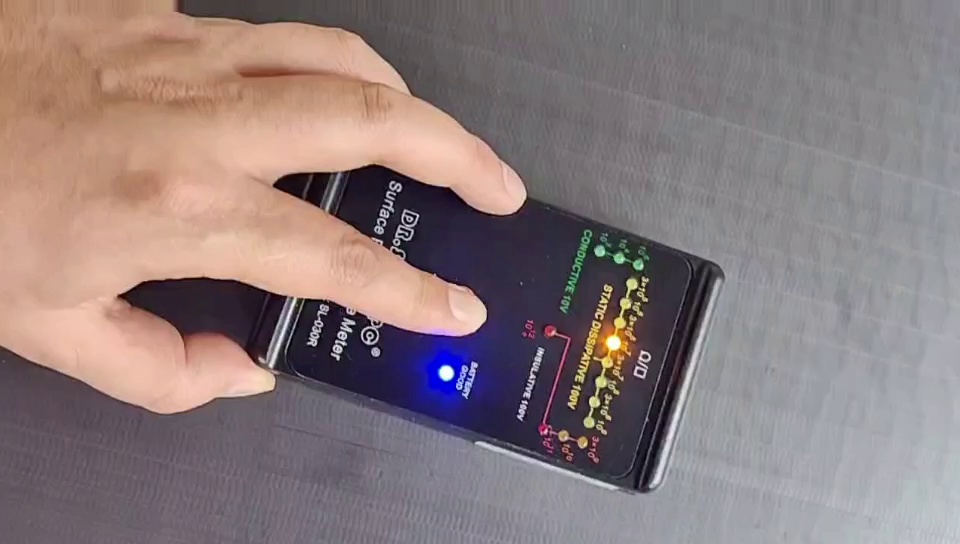

Ø  Surface resistivity of 106 -109Ω/sq

Ø  High structural strength and stiffness

Ø  Excellent dimensional stability

Ø  High Temperature Resistance

 Ø  Density1.72 g/cm3

Applications of ESD PEEK sheet



Ø   Critical test fixture applications

Ø   Wafer handling

Ø   Structural applications in wet process tools where static dissipation is important

Ø   ensitive circuits, circuit boards and hard drive disks

Ø   Components in high-speed electronic printing

Available sizes of ESD PEEK sheet and ESD PEEK rod

ESD PEEK Sheet: Thickness from 5-40mm, standard sizes is 600*1200mm

ESD PEEK Rod: Diameter from 10-50mm, standard length is 1000mm

Color: Black ESD PEEK sheet, Black ESD PEEK rod

Also offer Customized sizes

Triangleplas solution have ESD PEEK sheet and ESD PEEK rod in a variety of sizes in stock for customer's needs at any time.
